Solve Dynamical Optimization problem

BoundaryValueDiffEq.jl is capable of solving dynamical optimization problems via collocation solvers. The syntax for solving with BoundaryValueDiffEq.jl is quite different from JuMP-style optimization modeling DSL.

To model such optimal control problem is more similar to solve an boundary value problem, we only need to further provide the cost functional within BVPFunction. In the following content, we will explain the detailed usage of BoundaryValueDiffEq.jl in dynamical optimization with some hands-on examples.

Block Move Optimal Control

Block move optimal control problem is an easy example of optimal control problem Kelly [4], this problem models moving a small block between two points, starting and finishing at rest, in a fixed amount of time.

System dynamics

Suppose we apply the external force $f$ on a block which can slide without friction in one dimension, its position $x$ and velocity $v$ can be described using:

\[\left\{\begin{aligned} &\frac{dx}{dt}=v\\ &\frac{dv}{dt}=f \end{aligned}\right.\]

Since the presence of control variables $f$, we can pass our state variables and control variables together as [state variables, control variables], which is u = [x, v, f] in the system dynamics:

function block_move!(du, u, p, t)
    x, v, f = u[1], u[2], u[3]
    du[1] = v
    du[2] = f
end

To tell solvers the difference between state variables and control variables, f_prototype must be explicitly specified in BVPFunction, for example, we have 2 state variables and 1 control variable, so f_prototype = zeros(2).

Boundary Constraints

The block moves from $x = -1$ at time $t = 0$ to $x = 0$ at time $t = 1$, starting and finishing at rest:

\[x(0)=-1.0, v(0)=0, x(1)=0, v(1)=0\]

So the boundary conditions are:

function block_move_bc!(res, u, p, t)
    res[1] = u(0.0)[1] + 1.0
    res[2] = u(0.0)[2]
    res[3] = u(1.0)[1]
    res[4] = u(1.0)[2]
end

Cost functional

We want to minimize the total energy during the whole process, so the cost functional is an integral of the applied force(Lagrange form):

\[\min_{x(t),v(t),f(t)} \frac{1}{2}\int_0^1 u^2(\tau)d\tau\]

The cost functional should be defined following the interpolating style in boundary conditions, for example, use sol(t₁) to interpolate at t=t₁. Here, to express the integral cost function, we can directly use integral(f, domain) to integrate the integrand:

cost_fun(sol, p) = 0.5*integral((t, p) -> sol(t)[3]^2, (0.0, 1.0))

As for other cost functional which need the interpolation of some exact points of the solution(Mayer form), we only need to define an OOP cost function that interpolating the solution at the specific point, for example:

cost_fun(sol, p) = sol(1.0)[3]
cost_fun (generic function with 1 method)

State and Control bounds

Block move optimal control problem with minimized energy desn't require lower and upper bounds, so we can just specify lb = [-Inf, -Inf, -Inf] and ub = [Inf, Inf, Inf].

Initial guess

The initial guess of the dynamical optimization problem must be provided, either as the initial guess of the first state, u0 = [-1.0, 0.0, 6.0] or initial guess function of the whole solution such as u0(t, p) = [sin(t), cos(t), sin(t)].

With all the above parts, we can build the model for our block move optimal control example: So the copy-and-paste code for the block move optimal control problem is:

using BoundaryValueDiffEqMIRK, OptimizationIpopt
#cost_fun(sol, p) = 0.5*sum(reduce(hcat, sol.u)[3, :] .^ 2)*0.005
cost_fun(sol, p) = 0.5*integral((t, p) -> sol(t)[3]^2, (0.0, 1.0))
function block_move!(du, u, p, t)
    x, v, f = u[1], u[2], u[3]
    du[1] = v
    du[2] = f
end
function block_move_bc!(res, u, p, t)
    res[1] = u(0.0)[1] + 1.0
    res[2] = u(0.0)[2]
    res[3] = u(1.0)[1]
    res[4] = u(1.0)[2]
end
tspan = (0.0, 1.0)
u0 = [-1.0, 0.0, 6.0]
block_move_fun = BVPFunction(block_move!, block_move_bc!; cost = cost_fun,
    f_prototype = zeros(2), bcresid_prototype = zeros(4))
block_move_prob = BVProblem(
    block_move_fun, u0, tspan; lb = [-Inf, -Inf, -Inf], ub = [Inf, Inf, Inf])
sol = solve(block_move_prob, MIRK4(; optimize = IpoptOptimizer()), dt = 0.002, adaptive = false)

Rocket Launching Optimal Control

Another classical optimal control problem is the rocket launching problem(aka Goddard Rocket problem). Say we have a rocket with limited fuel and is launched vertically. And we want to control the final altitude of this rocket so that we can make the best of the limited fuel in rocket to get to the highest altitude. In this optimal control problem, the state variables are:

  • Velocity of the rocket: $x_v(t)$
  • Altitude of the rocket: $x_h(t)$
  • Mass of the rocket and the fuel: $x_m(t)$

The control variable is

  • Thrust of the rocket: $u_t(t)$

The dynamics of the launching can be formulated with three differential equations:

\[\left\{\begin{aligned} &\frac{dx_v}{dt}=\frac{u_t-drag(x_h,x_v)}{x_m}-g(x_h)\\ &\frac{dx_h}{dt}=x_v\\ &\frac{dx_m}{dt}=-\frac{u_t}{c} \end{aligned}\right.\]

where the drag $D(x_h,x_v)$ is a function of altitude and velocity:

\[D(x_h,x_v)=D_c\cdot x_v^2\cdot\exp^{h_c(\frac{x_h-x_h(0)}{x_h(0)})}\]

gravity $g(x_h)$ is a function of altitude:

\[g(x_h)=g_0\cdot (\frac{x_h(0)}{x_h})^2\]

\[c\]

is a constant. Suppose the final time is $T$, we here want to maximize the final altitude $x_h(T)$:

\[\max x_h(T)\]

The inequality constraints for the state variables and control variables are:

\[\left\{\begin{aligned} &x_v>0\\ &x_h>0\\ &m_T<x_m<m_0\\ &0<u_t<u_{t\text{max}} \end{aligned}\right.\]

Similar solving for such optimal control problem can be found on JuMP.jl and InfiniteOpt.jl. The detailed parameters are taken from COPS.

using BoundaryValueDiffEqMIRK, OptimizationIpopt, Plots
h_0 = 1                      # Initial height
v_0 = 0                      # Initial velocity
m_0 = 1.0                    # Initial mass
m_T = 0.6                    # Final mass
g_0 = 1                      # Gravity at the surface
h_c = 500                    # Used for drag
c = 0.5 * sqrt(g_0 * h_0)    # Thrust-to-fuel mass
D_c = 0.5 * 620 * m_0 / g_0  # Drag scaling
u_t_max = 3.5 * g_0 * m_0    # Maximum thrust
T_max = 0.2                  # Number of seconds
T = 1_000                    # Number of time steps
Δt = 0.2 / T;                # Time per discretized step

tspan = (0.0, 0.2)
drag(x_h, x_v) = D_c * x_v^2 * exp(-h_c * (x_h - h_0) / h_0)
g(x_h) = g_0 * (h_0 / x_h)^2
function rocket_launch!(du, u, p, t)
    # u_t is the control variable (thrust)
    x_v, x_h, x_m, u_t = u[1], u[2], u[3], u[4]
    du[1] = (u_t-drag(x_h, x_v))/x_m - g(x_h)
    du[2] = x_v
    du[3] = -u_t/c
end
function rocket_launch_bc!(res, u, p, t)
    res[1] = u(0.0)[1] - v_0
    res[2] = u(0.0)[2] - h_0
    res[3] = u(0.0)[3] - m_0
    res[4] = u(0.2)[4] - 0.0
end
cost_fun(u, p) = -u(0.2)[2]
u0 = [v_0, h_0, m_T, 3.0]
rocket_launch_fun = BVPFunction(rocket_launch!, rocket_launch_bc!; cost = cost_fun, f_prototype = zeros(3))
rocket_launch_prob = BVProblem(
    rocket_launch_fun, u0, tspan; lb = [0.0, h_0, m_T, 0.0], ub = [Inf, Inf, m_0, u_t_max])
sol = solve(rocket_launch_prob, MIRK4(; optimize = IpoptOptimizer()); dt = Δt, adaptive = false)

u = reduce(hcat, sol.u)
v, h, m, c = u[1, :], u[2, :], u[3, :], u[4, :]

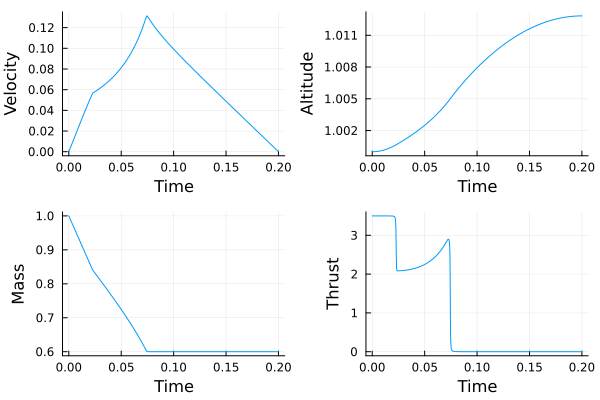

# Plot the solution
p1 = plot(sol.t, v, xlabel = "Time", ylabel = "Velocity", legend = false)
p2 = plot(sol.t, h, xlabel = "Time", ylabel = "Altitude", legend = false)
p3 = plot(sol.t, m, xlabel = "Time", ylabel = "Mass", legend = false)
p4 = plot(sol.t, c, xlabel = "Time", ylabel = "Thrust", legend = false)

plot(p1, p2, p3, p4, layout = (2, 2))

******************************************************************************
This program contains Ipopt, a library for large-scale nonlinear optimization.
 Ipopt is released as open source code under the Eclipse Public License (EPL).
         For more information visit https://github.com/coin-or/Ipopt
******************************************************************************

Similar optimal control problem solving can also be deployed in JuMP.jl and InfiniteOpt.jl.

Cart-Pole Optimal Control

The dynamic equation of the motion of cart-pole swing-up problem are given by:

\[ \begin{bmatrix} \ddot{x} \\ \ddot{\theta} \end{bmatrix} \begin{bmatrix} \cos\theta & \ell \\ m_1 + m_2 & m_2 \ell \cos\theta \end{bmatrix}^{-1} \begin{bmatrix} - g \sin\theta \\ F + m_2 \ell \dot{\theta}^2 \sin\theta \end{bmatrix}\]

where $x$ is the location of the cart, $\theta$ is the pole angle, $m_1$ is the cart mass, $m_2$ is the pole mass, $l$ is the pole length.

By converting the dynamics to first order equations, we can get the formulation:

\[\begin{bmatrix} \dot{x} \\ \dot{\theta} \\ \ddot{x} \\ \ddot{\theta} \\ \dot{e} \end{bmatrix} f\!\left( \begin{bmatrix} x \\ \theta \\ \dot{x} \\ \dot{\theta} \\ e \end{bmatrix} \right) \begin{bmatrix} \dot{x} \\ \dot{\theta} \\ \dfrac{-m_2 g \sin\theta \cos\theta - \left(F + m_2 \ell \dot{\theta}^2 \sin\theta\right)} {m_2 \cos^2\theta - (m_1 + m_2)} \\ \dfrac{(m_1 + m_2) g \sin\theta + \cos\theta \left(F + m_2 \ell \dot{\theta}^2 \sin\theta\right)} {m_2 \ell \cos^2\theta - (m_1 + m_2)\ell} \\ F^2 \end{bmatrix}\]

and the initial conditions of all states at $t=0$ are all zero, the boundary conditions at time $t_f$ are:

\[x_f=d, \dot{x_f}=0, \theta_f=\pi, \dot{\theta_f}=0\]

The target cost function is defined as the "energy" so the target cost function is:

\[\min J=\int\dot{e}dt=F\]

using BoundaryValueDiffEqMIRK, OptimizationIpopt, Plots
m_1 = 1.0                      # Cart mass
m_2 = 0.3                      # Pole mass
l = 0.5                        # Pole length
d = 2.0                        # Cart target location
t_0 = 0.0                      # Start time
t_f = 2.0                      # Final time
g = 9.81                       # Gravity constant
tspan = (t_0, t_f)
function cart_pole!(du, u, p, t)
    x, θ, dx, dθ, f = u[1], u[2], u[3], u[4], u[5]
    du[1] = dx
    du[2] = dθ
    du[3] = (- m_2*g*sin(θ)*cos(θ) - (f + m_2*l*θ^2*sin(θ))) / (m_2*l*cos(θ)^2 - m_1 - m_2)
    du[4] = ((m_1 + m_2)*g*sin(θ) + cos(θ)*(f + m_1*l*dθ^2*sin(θ))) /
            (m_2*l*cos(θ)^2 - (m_1 + m_2)*l)
end

function cart_pole_bc!(du, u, p, t)
    du[1] = u(t_f)[1] - d
    du[2] = u(t_f)[2] - π
    du[3] = u(t_0)[2] - 0.0
    du[4] = u(t_0)[3] - 0.0
    du[5] = u(t_0)[4] - 0.0
    du[6] = u(t_f)[3] - 0.0
    du[7] = u(t_f)[4] - 0.0
end
cost_fun(u, p) = u(t_f)[5]
u0 = [0.0, 0.0, 0.0, 0.0, 10.0]
cart_pole_fun = BVPFunction(cart_pole!, cart_pole_bc!; cost = cost_fun,
    bcresid_prototype = zeros(7), f_prototype = zeros(4))
cart_pole_prob = BVProblem(cart_pole_fun, u0, tspan; lb = [-2.0, -Inf, -Inf, -Inf, -20.0],
    ub = [2.0, Inf, Inf, Inf, 20.0])
sol = solve(cart_pole_prob, MIRK4(; optimize = IpoptOptimizer()); dt = 0.01, adaptive = false)

t = sol.t
x, theta, dx, dtheta, f = sol[1, :], sol[2, :], sol[3, :], sol[4, :], sol[5, :]

L = 1.0    # pole length (visual)
cart_w = 0.4    # cart width
cart_h = 0.2    # cart height

# Precompute pole tip coordinates
px = x .+ L .* sin.(theta)
py = cart_h/2 .- L .* cos.(theta)

# Axis limits (a bit margin around the cart trajectory)
xmin = minimum(x) - 2L
xmax = maximum(x) + 2L
ymin = -2.0
ymax = 2.0

anim = @animate for k in eachindex(t)
    cart_x = x[k]
    pole_x = px[k]
    pole_y = py[k]

    # Base plot / axis
    plot(; xlim = (xmin, xmax), ylim = (ymin, ymax), aspect_ratio = :equal,
        legend = false, title = "Cart–Pole (t = $(round(t[k], digits=2)) s)")

    # Draw ground
    plot!([xmin, xmax], [0, 0], lw = 2, color = :black)

    # Draw cart as a rectangle
    rect = Shape(
        [cart_x - cart_w/2, cart_x + cart_w/2, cart_x + cart_w/2, cart_x - cart_w/2],
        [0, 0, cart_h, cart_h])
    plot!(rect, color = :gray)

    # Draw pole as a line from cart center to tip
    plot!([cart_x, pole_x], [cart_h/2, pole_y], lw = 3, color = :red)

    # Draw pivot point
    scatter!([cart_x], [cart_h/2], ms = 4, color = :black)
end

# Save GIF
gif(anim, "../assets/cart_pole.gif", fps = 40)

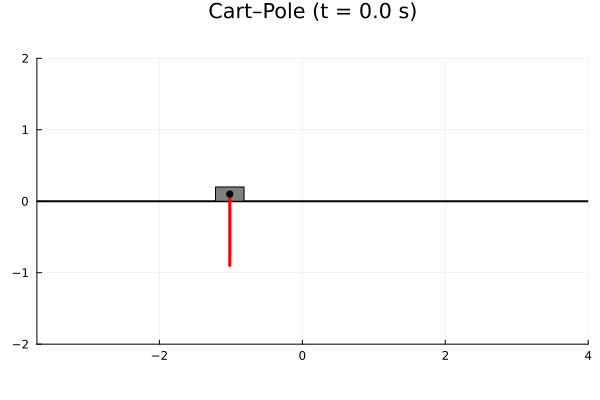

Example block output
