Compartmental OED
Estimate three parameters by observing one state. We optimize a relaxed selection of six measurements from 19 candidate times, following the compartmental OED benchmark. The nominal vector is p = [θ₁, θ₂, θ₃]. All three parameters are estimated but fixed as design inputs; only measurement weights are optimized. We use no physical control or shooting resets, hence no shooting matching equalities.
ComponentArrays supplies packing; Optimization/OptimizationMOI and Ipopt solve the continuous relaxation; CairoMakie plots event weights. A forward OED solve itself needs none of those optional optimization/plotting packages.
using CorleoneOED, LuxCore, Random, OrdinaryDiffEqTsit5, LinearAlgebra
using Optimization, OptimizationMOI, Ipopt, ComponentArrays, CairoMakie
using SymbolicIndexingInterface: parameter_values_at_time, parameter_index
function compartmental(du, u, p, t)
θ1, θ2, θ3 = p
du[1] = θ3 * (-θ1 * exp(-θ1 * t) + θ2 * exp(-θ2 * t))
return nothing
end
problem = ODEProblem(compartmental, [0.0], (0.0, 50.0), [0.05884, 4.298, 21.8])
measurement_points = [
0.0, 0.166, 0.333, 0.5, 0.666, 1.0, 1.5, 2.0, 2.5, 3.0,
4.0, 5.0, 6.0, 8.0, 10.0, 12.0, 24.0, 30.0, 48.0,
]
oed = OEDLayer(
problem, Tsit5(); params = [1, 2, 3], measurements = (
DiscreteMeasurement(:sample, measurement_points, (x, p, t) -> x[1]),
)
)
ps, st = LuxCore.setup(Xoshiro(1), oed);Solve the relaxed design
Physical parameters remain fixed. Each candidate time has a weight in [0,1]; the total weight is bounded by six. Fractional weights are allowed in this solve. Unlike a continuous density, this budget counts event weights rather than time. The first point at 0.0 is supported even though this model's state sensitivity is zero there; endpoint measurements are not implicitly removed. DCriterion returns 1/det(F), without a logarithm or dimension normalization.
optprob = OptimizationProblem(oed, DCriterion(); ps, st, M = [6.0])
result = solve(
optprob, Ipopt.Optimizer(); tol = 1.0e-8,
hessian_approximation = "limited-memory", max_iter = 100, print_level = 0
);
@assert CorleoneOED.SciMLBase.successful_retcode(result)
@assert isfinite(result.objective)
_, reconstruct = pack(default_vectorizer(), ps)
optimal_ps = reconstruct(result.u)
trajectory, _ = oed(nothing, optimal_ps, st)
F = fisher_information(oed, trajectory)
optimal_budget = only(sampling_sums(oed, trajectory))
@assert isposdef(Symmetric(F))
@assert optimal_budget <= 6.0 + 1.0e-5
@assert isapprox(result.objective, DCriterion()(F); rtol = 1.0e-5)
(; termination = result.retcode, objective = result.objective, budget = optimal_budget)(termination = SciMLBase.ReturnCode.Success, objective = 3.73296717652639e-6, budget = 5.999995943190418)Evaluate weights from the current parameter schedule at actual event times. The saved augmented states contain sensitivities/information, not weight histories.
weights = [
parameter_values_at_time(trajectory, trajectory, t)[parameter_index(trajectory, :sample)]
for t in measurement_points
]
figure = Figure()
axis = CairoMakie.Axis(figure[1, 1]; xlabel = "Time", ylabel = "Measurement weight")
scatter!(axis, measurement_points, weights)
figure

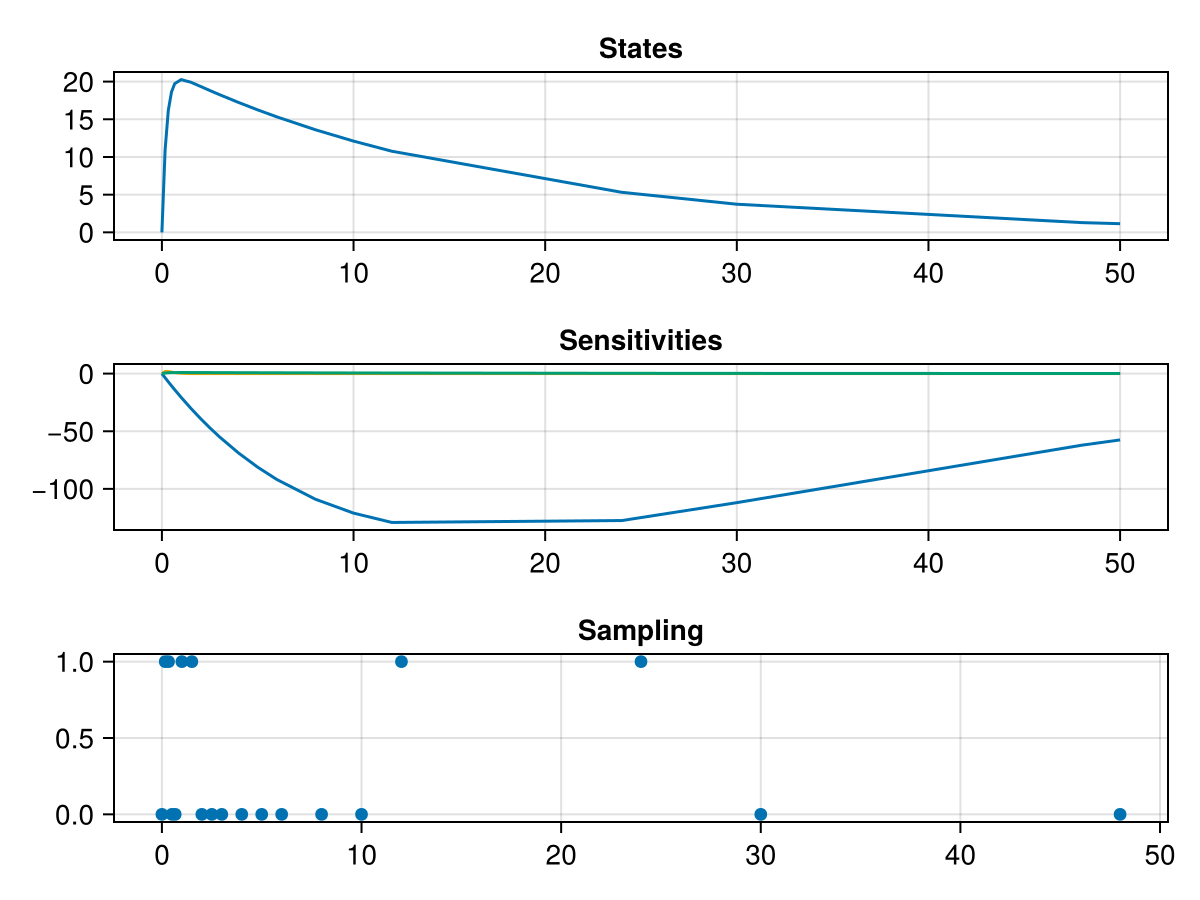

Optimized relaxed weights at the 19 candidate times. A point near one is a heavily weighted event; fractional values are not rounded here. Successful local solver termination and feasible budgets do not prove a globally optimal integer design.
Integer sampling decisions
To require binary selections, construct the problem below and choose an integer-capable optimizer. Ipopt solves the continuous relaxation only.
integer_problem = OptimizationProblem(oed, DCriterion(); ps, st, M = [6.0], integer_weights = true);
@assert sum(integer_problem.int) == length(measurement_points)This creates a binary-weight problem description; it does not solve it. Passing the integer mask to a continuous solver does not enforce binary choices.
